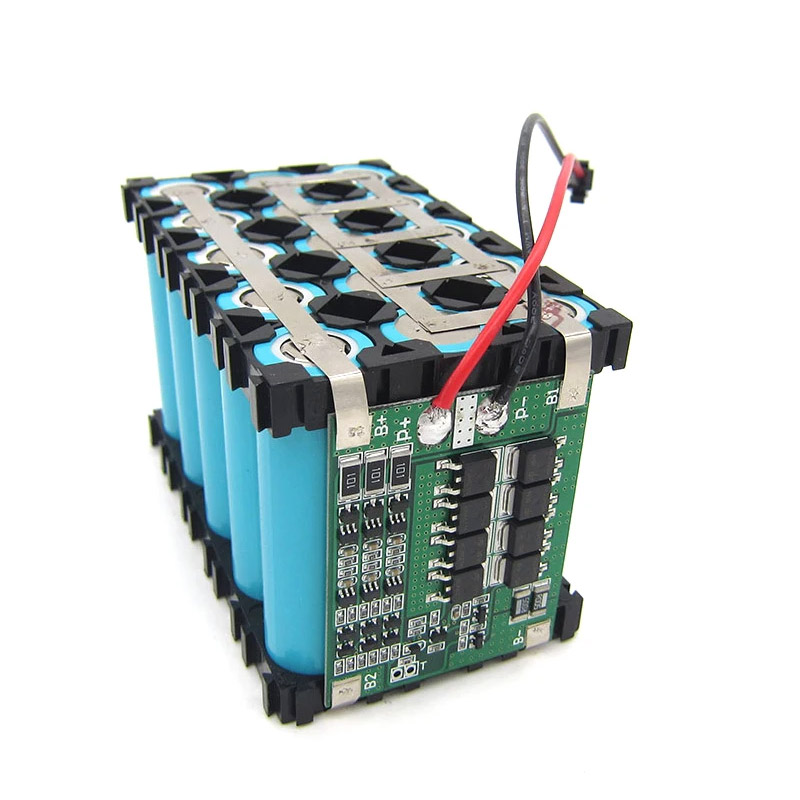

3S 25A Li-Ion 18650 BMS PCM Battery Protection Board Bms Pcm With Balance For Li-Ion Lipo Battery Cell Pack
Product Description:
3 Series 18650 battery
11.1V (Li-ion 18650 or li-ion battery rated voltage)12. 6V (Li-ion battery full charge voltage)10.8V ( Lipo battery pack rated voltage)The lithium battery protection board is not included the welding tabs
BMS activate method : Use 12. 6V Li-ion charger to charge it.
NOTE:
1) This board is not suit high power electronic tools, if use for screwdrier anddrill,electric bike series make, fishing machine and 1W LED, please don't buythis.
2)Above 3A device, means the battry discharge rate is more than 3C.
1C rated battery.2000mah equals 2ah*1=2A max working current.
3C rated battery means 2ahx3=6A Max working current.
Balancer is just a Auxiliary function, The balancing means when the batterycharging.each series battery need with the same voltage.when ONE cell voltageget 4.2V ,the other cells not, the first cell voltage will discharge to wait theother cells rising to the same level.
Note:battery internal resistance differences within 5 milliohm, voltage within 0.03 Yvoltage. capacity vary within 50 ma
Features:
1) high-accuracy voltage detection circuit:
2) terminal of the charger using high voltage device;
3) Built-in threestage over-current detection circuit (over-current 1.over-current 2 or load short circuit);
4) MOS transistor can control the battery charge and discharge:
5) low standby current consumption.

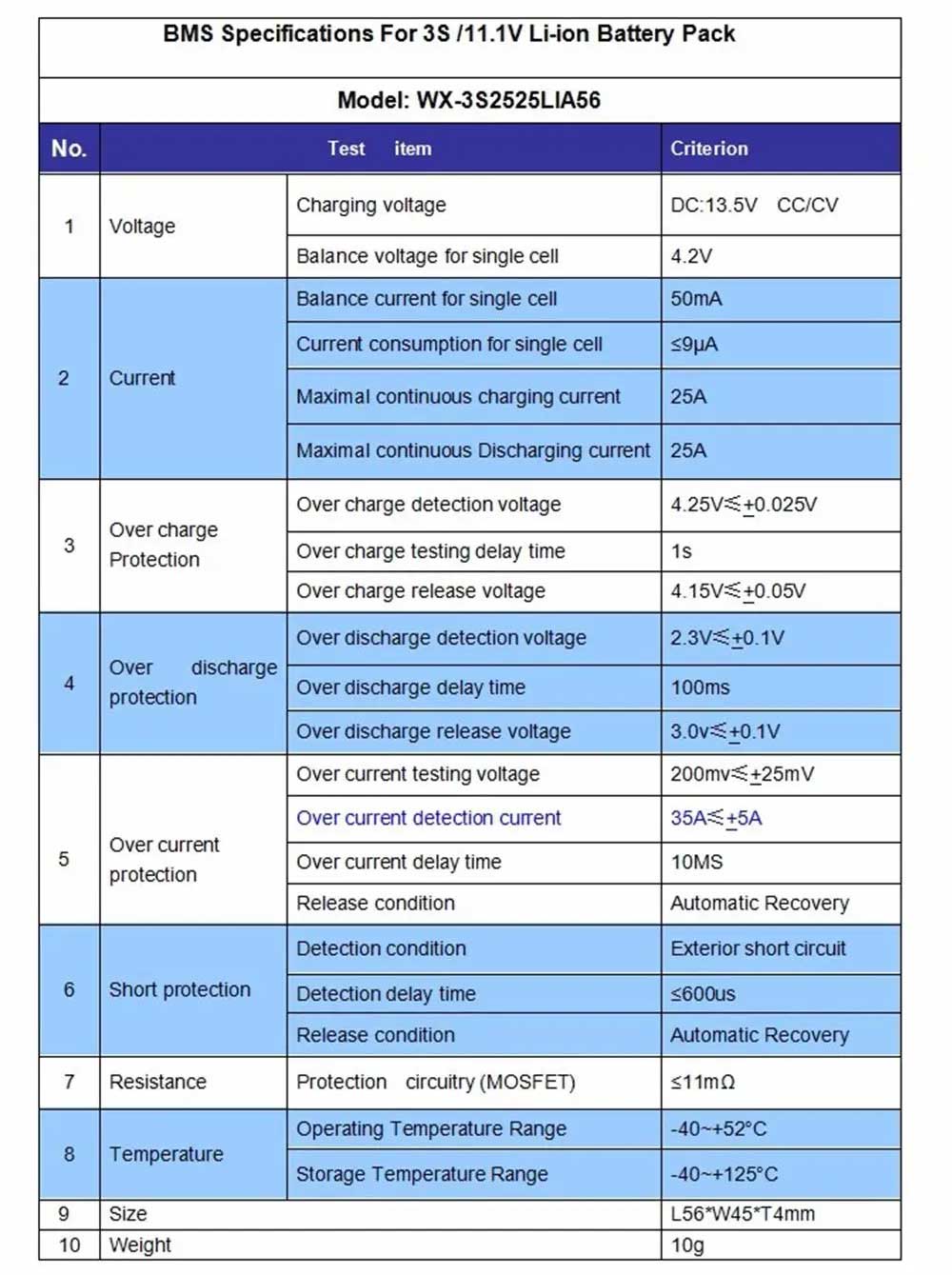

Brief Parameter:
Over Charge voltage:4.25-4.35v±0.05v
Over Discharge voltage:23-30v±0.05v
Max Working current:25A
Max peak current:35-40A
Working temperature:-40---+50
Storage Temperature:-40-- +80
Small current:50uA
Life cycle:more then 30000 hours
Resistance:Less than 100mQ
Short Cut:Protectable, Charge can repair
Size:56*45*4.0mm
